Wholesale High-Quality AC Power Noise Filter 10A Single Passive Rfi
Filter Picture
| Item | Power noise Filter |
| Model | YB35D4-6A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/50HZ 0.8mA Max |
| Operating frequency | DC to 400Hz |
| Design corresponding to | UL1283, CSA C22.2 No.8, IEC/EN 60939, CQC GB 15288/GB 15287-2008 |
| Flammability corresponding to | UL 94V-0 |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply
may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different
customer's EMC tests.
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB 35 D4 -
10A - W/Q /S
( 5 )
¦
¦
¦ ¦
¦
circuit case
current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Tabulates:
| | Rated Current
@40°C
| Terminal Options*
| Leakage current 250V/50Hz
| Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz)
|
| Model No. |
| | |  |
| YB35E4-1A | 1A | Q | S | W | <1.0mA | Fig.1 | 115/250V | 50/60Hz |
| YB35E4-2A | 2A | Q | S | W | Fig.1 |
| YB35E4-3A | 3A | Q | S | W | Fig.1 |
| YB35E4-4A | 4A | Q | S | W | Fig.1 |
| YB35E4-6A | 6A | Q | S | W | Fig.1 |
| YB35E4-8A | 8A | Q | S | W | Fig.1 |
| YB35E4-10A | 10A | Q | S | W | Fig.1 |
| YB35E4-15A | 15A | Q | S | - | Fig.1 |
| YB35D1-1A | 1A | Q | - | W | Fig.1 |
| YB35D1-2A | 2A | Q | - | W | Fig.1 |
| YB35D1-3A | 3A | Q | - | W | Fig.1 |
| YB35D1-4A | 4A | Q | - | W | Fig.1 |
| YB35D1-6A | 6A | Q | - | W | Fig.1 |
| YB35D2-6A | 6A | Q | S | W | Fig.1 |
| YB35D2-8A | 8A | Q | S | W | Fig.1 |
| YB35D2-10A | 10A | Q | S | W | Fig.1 |
| YB35D2-15A | 15A | Q | S | - | Fig.1 |
| YB35D3-8A | 8A | Q | S | W | Fig.1 |
| YB35D3-10A | 10A | Q | S | W | Fig.1 |
| YB35D3-15A | 15A | Q | S | - | Fig.1 |
| YB35D4-10A | 10A | Q | S | W | Fig.1 |
| YB35D4-15A | 15A | Q | S | - | Fig.1 |
| YB35D4-20A | 20A | Q | S | - | Fig.1 |
| YB35D5-15A | 15A | Q | S | - | Fig.1 |
| YB35D5-20A | 20A | Q | S | - | Fig.1 |
| YB35D5-30A | 30A | - | S | - | Fig.1 |
| YB35D6-20A | 20A | - | S | - | Fig.1 |
| YB35D6-30A | 30A | - | S | - | Fig.1 |
| YB35F1-20A | 20A | - | S | - | Fig.1 |
| YB35F1-30A | 30A | - | S | - | Fig.1 |
| YB35F2-30A | 30A | - | S | - | Fig.1 |
| YB35F2-40A | 40A | - | S | - | Fig.1 |
| YB35F2-50A | 50A | - | S | - | Fig.1 |
| YB35F3-50A | 50A | - | S | - | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Electrical schematic:
Fig.1

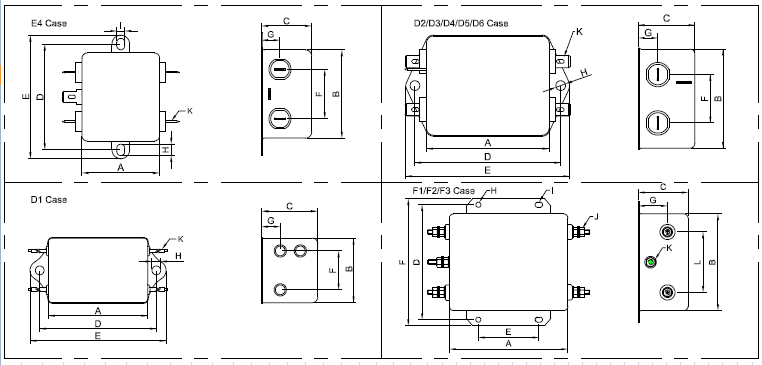

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode
---------------
differential mode
Package Specification
Power noise Filter: CTN/80pcs
N/G W.: 0.22/0.24KG/pcs
Measures:0.565*0.285*0.225m
Sample
-- Sample Fee: Negotiate
-- Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for
delivery.
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
Factory pictures
The exhibition picture
The certification and patents
Single-Phase Filter:
cUL: 20190321-E471748
TUV: B0899310001Rev.01
CQC: 19001226449
CE: SZAIS180620005-01
ROHS: MMCRHRWM60371744
Three-Phase Filter:
cUL: 20190325-E502442
ENEC: ENEC-02580
CE: SZAIS180620005-01
ROHS: MMCRHRWM60371744
Our advantages:
- We are a listed company. NO:667344, brand guarantee, reliable quality
- We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH
certification to ensure the product quality
- We have the relevant professional experimental equipment, so we can
provide a free diagnostic conducting test for you.
- Free EMC rectification technical support and provide free test
samples
- Automation technology, scale production, excellent price
- Good service, fast delivery!
- After-sales service: free replacement within three months, free maintenance within 6
years, life-long maintenance
- Cooperate with the top scientific research laboratory
- We have a professional R&D team
